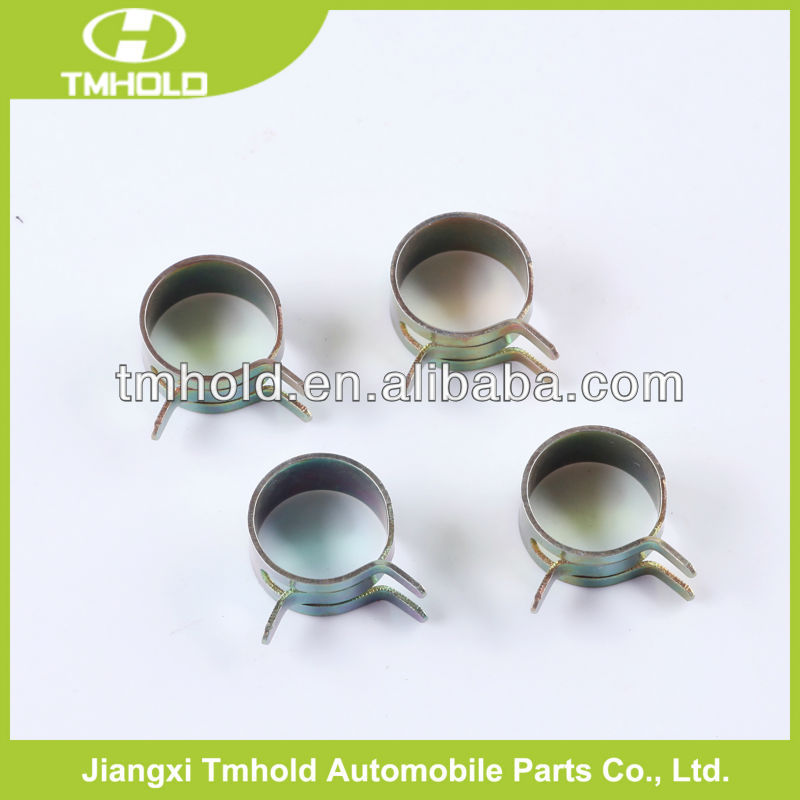

Pre-opened stainless steel spring hose clamp with T-clip

FOB Reference Price:Get Latest Price
US $0.01-1 / Pieces | 5000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
TMHOLD
Model Number:
TM732
Usage:
Pipe Clamp
Material:
Stainless Steel
Structure:
F Clamp
Standard or Nonstandard:
Standard
type:
hose clamp
certificate:
ISO9001,2000
payment terms:
T/T,Western union,Paypal
delivery ways:
by sea,by air,by courier express
brand name:
TMHOLD
structure:
F clamp
constant tension band clamp:
Material 65Mn
spring hose clamps:
band clamps
usage:
spring hose clamp
model number:
Din 472
Supply Ability
Supply Ability:
500000 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
50-100 pieces are packed in a plastic bag, and then several bags in a carton, and we can also package them as customer needed.
Port
ningbo/shanghai
Lead Time :
30-45days

Specifications

stainless steel spring hose clamp with T-clip
bandwidth 6,8,10,12,15mm
Material ;65Mn-clam,SS-T-clip
Finish:zinc-plating

Pre-opened stainless steel spring hose clamp with T-clip



1 bandwidth 6,8,10,12,15mm
2 Material ;65Mn-clam,SS-T-clip
3 Finish:zinc-plating& oxidation

Pre-opened tension spring hose clamps with T-clip provide constant, leak proof security for low pressure applications. Their wide 6-15mm band width ensures improved clamping action without hose damage, and offer a low cost solution for high volume production..

ReferenceNominal diameter(mm)Theoretical Range(mm)Band thickness(mm)Band Width(mm)Material
Th736060066.5-7.30.4665Mn spring steel
Th7360700-Th73607507-7.57.6-8.90.5665Mn spring steel
Th736080088.6-9.50.6665Mn spring steel
Th7360850-Th73609508.5-9.59.3-11.30.6865Mn spring steel
Th7361000-Th736115010.0-11.510.8-13.70.8865Mn spring steel
Th7361200-Th736145012.0-14.513.0-17.30.810 65Mn spring steel
Th7361500-Th736160015.0-16.016.2-19.11.01065Mn spring steel
Th736160B-Th736210016.0-21.017.3-25.01.01265Mn spring steel
Th736215021.523.1-25.51.21265Mn spring steel
Th736220022.023.6-26.21.21565Mn spring steel
Th7362250-Th736250022.5-25.024.2-29.81.21265Mn spring steel
Th73626002628.6-30.01.512 65Mn spring steel
Th7362700-Th736300027-3029.0-35.21.71265Mn spring steel
Th7363300-Th736360033-3635.5-39.01.812

65Mn spring steel



 Remarks; All sizes are available as customer requested, and we can also make them according to the drawings which customer provided.
