Accuseal high performance exhaust clamp

FOB Reference Price:Get Latest Price
US $1-5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
TMHOLD
Model Number:
THU516
Usage:
Pipe Clamp
Material:
Metal
Structure:
U clamp
Standard or Nonstandard:
Standard
type:
U style
logo:
OEM
package:
50-100 pcs in a plastic bag
delivery time:
within 15 days
screw nut:
M8
MOQ:
1000 pcs
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
50-100 pcs in a plastic bag and several bags in a catn or as you requested.
Port
ningbo or shanghai
Lead Time :
within 15 days after receiving the pre-payment

Specifications

1)Bandwidth:31.7mm
2)Band thickness: 1.8mm
3)2"-5" acceptable

Accuseal high performance exhaust clamp



 Features





   * Made of beefy 3/32" thick 304 Stainless Steel. This clamp is all function.
   * 1-1/4" wide band.
   * Hardened Grade-8 clear zinc-plated hardware included - clamps are fully assembled as shown.
   * Torque to 35 foot-pounds.
   * Will not distort or "crimp" exhaust connections like U-Clamps when installed properly
   * easy disassembly of exhaust pipes later-on.
   * Approx. 40% stronger rotation resistance than AccuSeal Clamps when properly installed.
   * Approx. 55% stronger separation resistance than AccuSeal Clamps when properly installed.
   * Available in 2-1/2" & 3" sizes.
   * Available for aftermarket only through Classic Chambered Exhaust at this time.

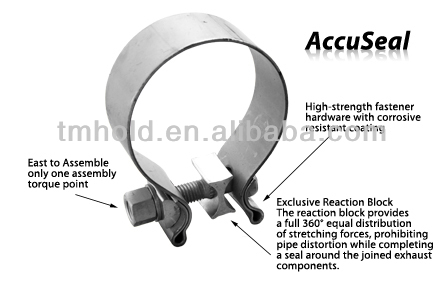

 Advantages





•High-strength fastener hardware with corrosive resistant coating



•Easy to assemble only one assembly torque point



•Exclusive reaction block, the reaction block provides a full 360°equal distribution of stretching forces, prohibiting pipe distortion while completing a seal around the joined exhaust components.









Specifications





Item NO.InchmmBand SPEC (W*T)Raw MaterialFinishing
THQLO2252.25'57.231.7*1.8 (mm)SUS 304Cleaning       (Polishing excl.)
THQLO2502.5'63.5
THQLO2752.75'69.9
THQLO3003.0'76.2
THQLO3253.25'82.6
THQLO3503.5'88.9
THQLO4004.0'101.6
THQLO4504.5'114.3
THQLO5005.0'127











Applications





Processing;

TUV certificate;
