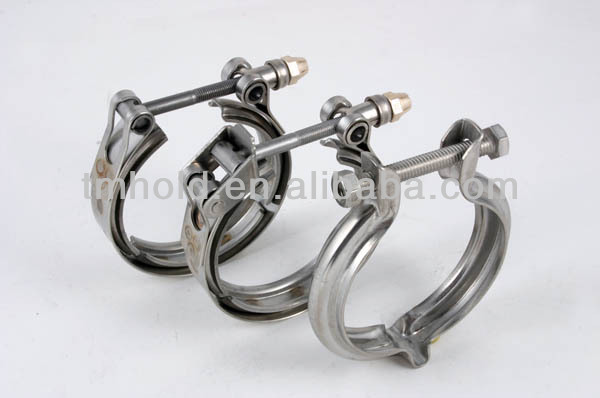

304 stainless steel all types of 1.5 v-band groove drive hose clamp for tubing muffler pipes

FOB Reference Price:Get Latest Price
US $3-10 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
TMHOLD
Size:
2"--12"
loge:
OEM
package:
one set in a bag
usage:
turbo exhaust muffler downpipe
delivery time:
within 15 days
deivery terms:
by air,by sea,by express
payment terms:
T/T,L/C or others
years:
8 years
Type:
Muffler Clamp
Car Make:
all cars
Model Number:
THV
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
one set in a plastic bag and several bags in a carton or as you requested.
Port
ningbo/shanghai/tianjin
Lead Time :
within 15 days after receiving the pre-payment

Specifications

1)size:from 2.0 inch to 12 inch
2)material:304ss or 316ss
3))one v band clamp with 2 flanges
4) v Clamp made for 8 years



  • Extra Heavy gauge precision formed retainers
  • 0.05rounded edge flat outer band for added strength
  • 431 stainless steel heat treated T- Bolt for superior strength & thread life at elevated temperatures
  • Silver plated 347 stainless “Tall Beam” style nut for maximum longevity
  • Clamps are date coded for traceability
  • Common sense size numbering – Clamp # equals nominal flange clamping diameter or O.D.
  • Both Quick Release Latch & T-Bolt styles available in many sizes






1)size:from 2.0 inch to 12 inch




2)material:304ss or 316ss




3))one v band clamp with two flanges




4) v Clamp made for 8 years



5) bandwidth:19mm,22mm,25mm

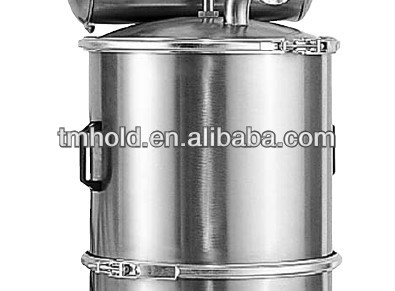

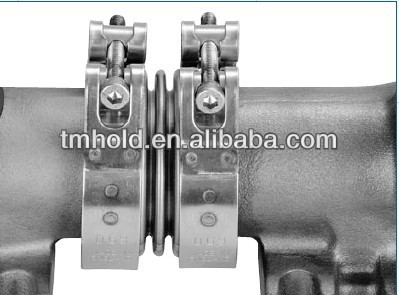

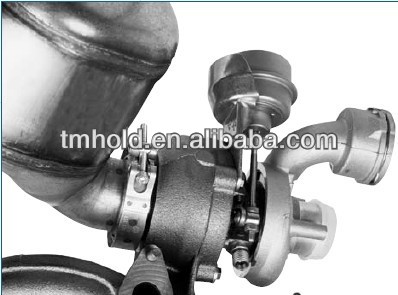

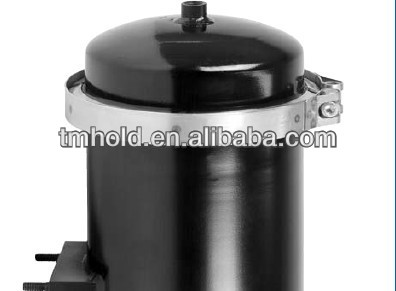

6)V band Couplings offer effective fastening solutions in a wide range of applications including pumps, engines, exhaust systems, filters, and food and chemical processing equipment. Because V-Band Couplings can be easily assembled and disassembled, they are often used on equipment that requires frequent service or maintenance,The most adaptable and reliable way to bond your exhaust components is to use a V-band assembly Kit. With a V-band kit, you manage to install and change your exhaust parts with no trouble, as well as maintaining the durability and strength of an exhaust .


Item No.Clamp size(inch)Screw(mm)Bandwidth(mm)Flange inner size(mm)Net weight(clamp)/gNet weight(flange)/gMaterialSurface
THV2002.0'M61951.6140104SUS 304     Polished
THV2252.25'57.9149114
THV2502.5'64.3158122
THV2752.75'70.6176133
THV3003.0'M82577231150
THV3253.25'83.3254163
THV3503.5'89.7263171
THV4004.0'102.4179192
THV5005.0'127.8329238
THV100010"M10254697448
THV120012"304.8799556
